Ground screw MTR GA
steel S235JR / hot-dip galvanized

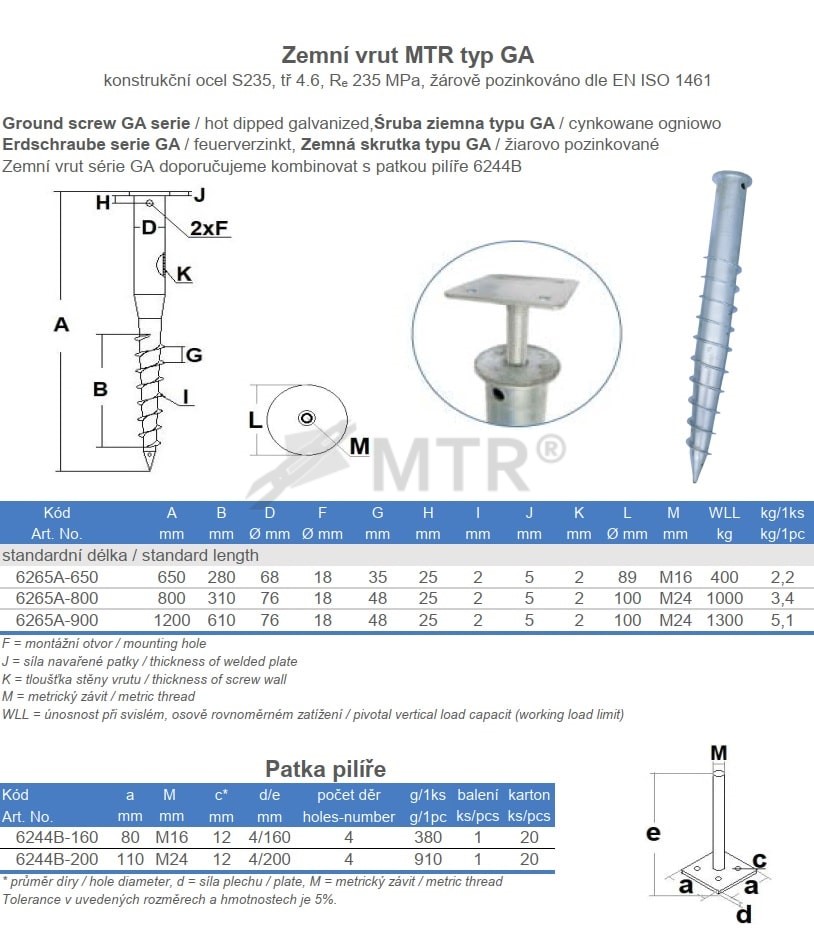

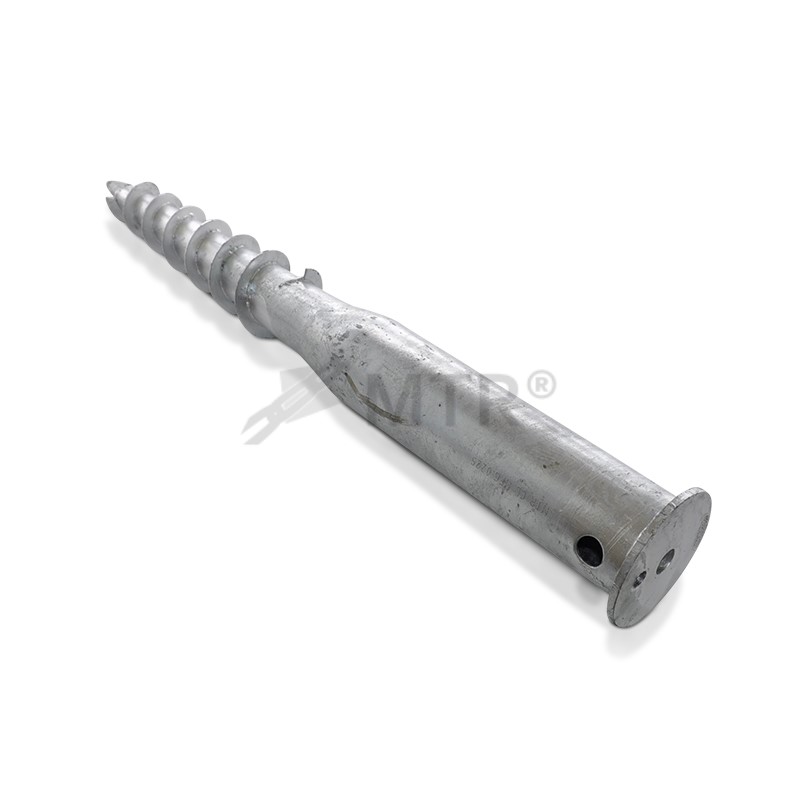

The MTR® GA ground screw is available in 5 sizes (screw diameter 68 and 76 mm, screw length 650–1200 mm). It is a ground screw with a welded round flange and M16/M24 center nut. It has a wide range of uses in the foundation of prefabricated buildings and wooden structures. This screw is recommended to be combined with the pillar base code: 6244B, which allows for variable adjustment of the anchorage surface height. For installation (screwing) of GA series screws, it is possible to use t mounting rod code: 6280A. ATTENTION: An installation wrench can be rented for installation.
We recommend the 6244B-160 pillar base for the 6265A-650 ground screw. We recommend the 6244B-200 pillar base for the 6265A-800, 850, and 900 ground screws.
